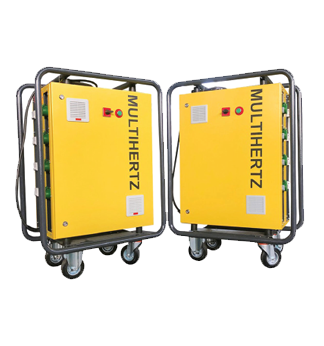

HIGH FREQUENCY ELECTRONIC CONVERTOR
Image gallery
Description
• With its current protection, it provides complete protection against high and low voltage short circuit and overheating. • There is no need for mandatory maintenance and similar service in mechanical converters, it works for many years without any problems. • It operates at very low volume and does not produce any noise. • It is lightweight and ergonomic without any alternative, it can be quickly moved between the molds in the work area. •It can be operated at different frequencies between 0 and 200 Hz, so it extends the economic life of the molds by preventing unneces- sary high vibration on concrete molds. • Our converters are fixed at certain points, providing the advantage of use with energy distribution panels.
Technical data
MFC -M 45/1 - Calisma Voltaji Operating Voltage
220-230V / 50 Hz
MFC -M 45/1 - Sebeke Akimi Current Input
3 Amp.
MFC -M 45/1 - Cikis Voltaji Voltage Output
42-55 V
MFC -M 45/1 - Cikis Akimi Current Output
45 Amp.
MFC -T 45/1 - Calisma Voltaji Operating Voltage
380-400V / 50 Hz
MFC -T 45/1 - Sebeke Akimi Current Input
3 Amp.
MFC -T 45/1 - Cikis Voltaji Voltage Output
42-55 V
MFC -T 45/1 - Cikis Akimi Current Output
45 Amp.
MFC -M 60/2 - Calisma Voltaji Operating Voltage
220-230V / 50 Hz
MFC -M 60/2 - Sebeke Akimi Current Input
5 Amp.
MFC -M 60/2 - Cikis Voltaji Voltage Output
42-55 V
MFC -M 60/2 - Cikis Akimi Current Output
60 Amp.
